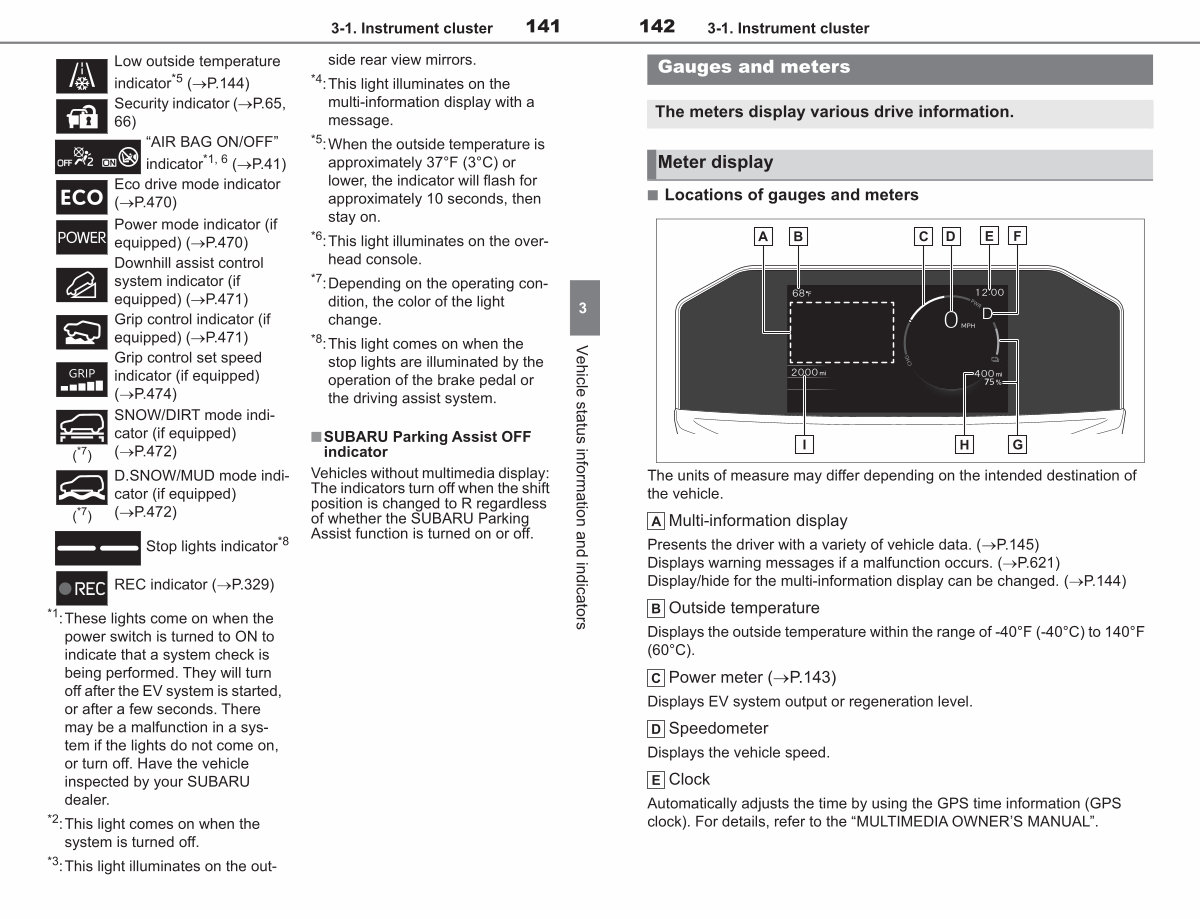

3-1. Instrument cluster
141
( * 7)
( * 7)
Low outside temperature indicator * 5( �P. 144) Security indicator( �P. 65, 66)“ AIR BAG ON / OFF” indicator * 1, 6( �P. 41) Eco drive mode indicator( �P. 470)
Power mode indicator( if equipped)( �P. 470) Downhill assist control system indicator( if equipped)( �P. 471) Grip control indicator( if equipped)( �P. 471) Grip control set speed indicator( if equipped)( �P. 474)
SNOW / DIRT mode indicator( if equipped)( �P. 472)
D. SNOW / MUD mode indicator( if equipped)( �P. 472)
Stop lights indicator * 8
REC indicator( �P. 329)
* 1: These lights come on when the
power switch is turned to ON to indicate that a system check is being performed. They will turn off after the EV system is started, or after a few seconds. There may be a malfunction in a system if the lights do not come on, or turn off. Have the vehicle inspected by your SUBARU dealer.
* 2: This light comes on when the system is turned off.
* 3: This light illuminates on the outside rear view mirrors.
* 4: This light illuminates on the
multi-information display with a message.
* 5: When the outside temperature is
approximately 37 ° F( 3 ° C) or lower, the indicator will flash for approximately 10 seconds, then stay on.
* 6: This light illuminates on the overhead console.
* 7: Depending on the operating condition, the color of the light change.
* 8: This light comes on when the
stop lights are illuminated by the operation of the brake pedal or the driving assist system.
■ SUBARU Parking Assist OFF indicator
Vehicles without multimedia display: The indicators turn off when the shift
position is changed to R regardless of whether the SUBARU Parking Assist function is turned on or off.
3
Vehicle status information and indicators
