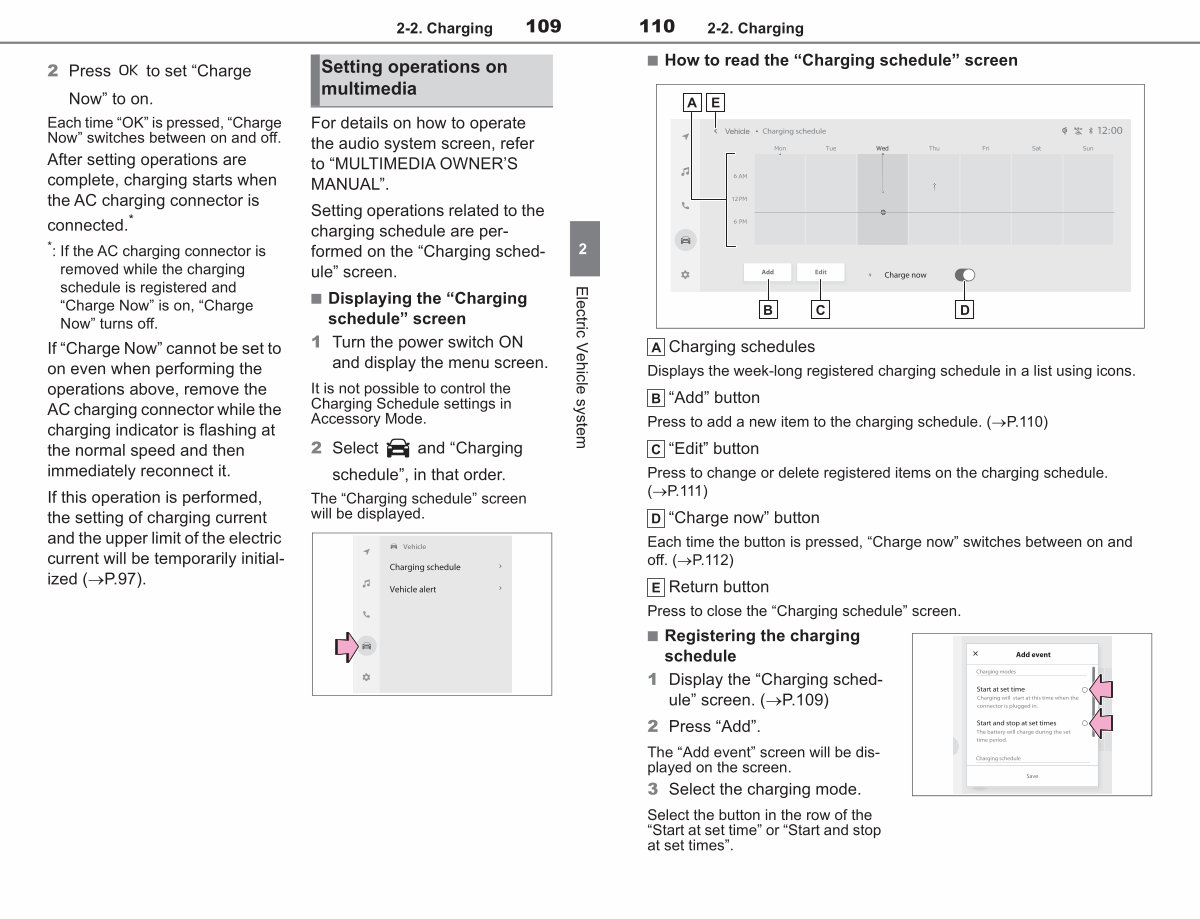

2-2. Charging
109
2 Press to set“ Charge Now” to on.
Each time“ OK” is pressed,“ Charge Now” switches between on and off.
After setting operations are complete, charging starts when the AC charging connector is
connected. * *: If the AC charging connector is
removed while the charging schedule is registered and“ Charge Now” is on,“ Charge Now” turns off.
If“ Charge Now” cannot be set to on even when performing the operations above, remove the AC charging connector while the charging indicator is flashing at the normal speed and then immediately reconnect it.
If this operation is performed, the setting of charging current and the upper limit of the electric current will be temporarily initialized( �P. 97).
Setting operations on multimedia
For details on how to operate the audio system screen, refer to“ MULTIMEDIA OWNER’ S MANUAL”.
Setting operations related to the charging schedule are performed on the“ Charging schedule” screen.
■ Displaying the“ Charging schedule” screen
1 Turn the power switch ON and display the menu screen.
It is not possible to control the Charging Schedule settings in Accessory Mode.
2 Select and“ Charging schedule”, in that order.
The“ Charging schedule” screen will be displayed.
2
Electric Vehicle system
