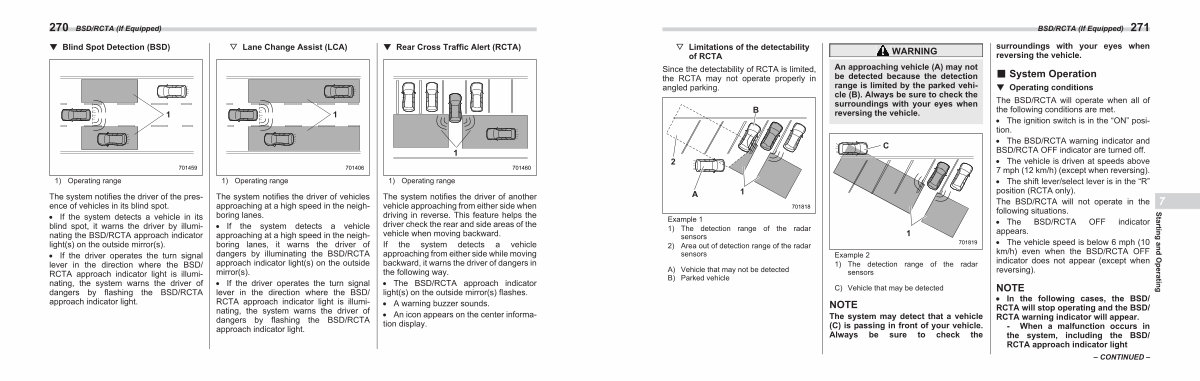

▽ Limitations of the detectability of RCTA Since the detectability of RCTA is limited, the RCTA may not operate properly in angled parking.
B
WARNING An approaching vehicle( A) may not be detected because the detection range is limited by the parked vehicle( B). Always be sure to check the surroundings with your eyes when reversing the vehicle. C 2 A
Example 1
1) The detection range of the radar sensors
2) Area out of detection range of the radar sensors
A) |
Vehicle that may not be detected |
B) |
Parked vehicle |
1
701818
Example 2
1) The detection range of the radar sensors
C) Vehicle that may be detected
701819
NOTE
The system may detect that a vehicle( C) is passing in front of your vehicle. Always be sure to check the
1
