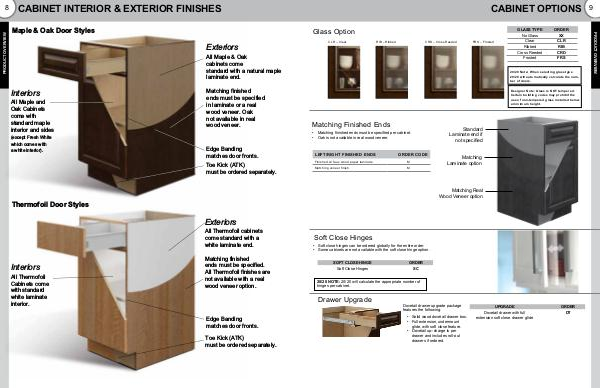

CABINET OPTIONS 9
Glass Option
CLR – Clear RIB – Ribbed CRD – Cross Reeded FRS – Frosted
GLASS TYPE No Glass Clear Ribbed Cross Reeded Frosted
ORDER
XX CLR RIB CRD FRS
20 / 20 Note: When selecting glass type 20 / 20 will automatically calculate the number of doors.
PRODUCT OVERVIEW
Designer Note: Glass is NOT tempered. Certain building codes may prohibit the use of non-tempered glass installed below a minimum height.
Matching Finished Ends
.
• Matching finished ends must be specified per cabinet.
• Oak is not available in real wood veneer.
Standard Laminate end if not specified
LEFT / RIGHT FINISHED ENDS
Finished w / faux wood paper laminate Matching veneer finish
ORDER CODE
M M
Matching Laminate option
Matching Real Wood Veneer option
Soft Close Hinges
• Soft close hinges can be ordered globally for the entire order.
• Some cabinets are not available with the soft close hinge option.
SOFT CLOSE HINGE Soft Close Hinges
ORDER SC
20 / 20 NOTE: 20 / 20 will calculate the appropriate number of hinges per cabinet.
Drawer Upgrade |
Dovetail drawer upgrade package features the following:
• Solid wood dovetail drawer box.
• Full extension, undermount glide, with soft close feature.
• Dovetail up – charge is per drawer and includes roll-out drawers if ordered.
|
UPGRADE
Dovetail drawer with full extension soft close drawer glide
|
ORDER DT |
