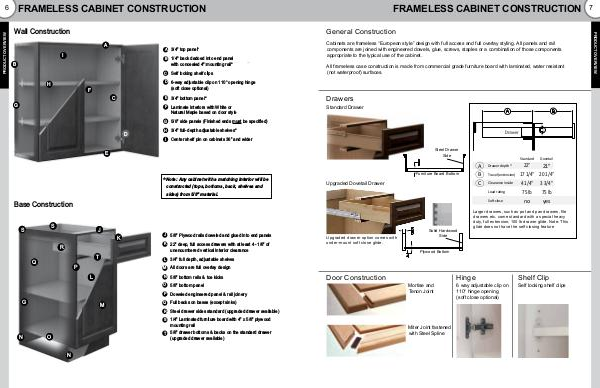

FRAMELESS CABINET CONSTRUCTION 7
General Construction
Cabinets are frameless“ European style” design with full access and full overlay styling. All panels and rail components are joined with engineered dowels, glue, screws, staples or a combination of those components appropriate to the typical use of the cabinet.
All frameless case construction is made from commercial grade furniture board with laminated, water resistant( not waterproof) surfaces.
PRODUCT OVERVIEW
Drawers
Standard Drawer
Upgraded Dovetail Drawer
Upgraded drawer option comes with under-mount soft close glide.
Steel Drawer Side
Furniture Board Bottom
Solid Hardwood Steel Side Drawer Side
Plywood Bottom Furniture Board Bottom
Stainless Steel
Solid Sides Hardwood Side
Furniture Board Bottom Plywood Bottom
Standard Dovetail
A |
Drawer depth * |
22 " |
21 " |
B |
Travel( extension) |
17 1 / 4 " |
20 1 / 4 " |
C |
Clearance inside |
4 1 / 4 " |
3 3 / 4 " |
|
Load rating |
75 lb |
75 lb |
|
Soft close |
no |
yes |
Larger drawers, such as pot and pan drawers, file drawers etc. come standard with a special heavy duty, full extension, 100 lb drawer glide. Note: This glide does not have the self closing feature
Door Construction
Stainless Steel Sides
Hinge
Mortise and 6 way adjustable clip on
Furniture Board Bottom
Tenon Joint 110 ° hinge opening( soft close optional)
Shelf Clip
Self locking shelf clips
Miter Joint fastened with Steel Spline
