2017 RSI PCS Product Specification Guide Volume 1 | Page 61

ADA COMPLIANT CABINETS

61

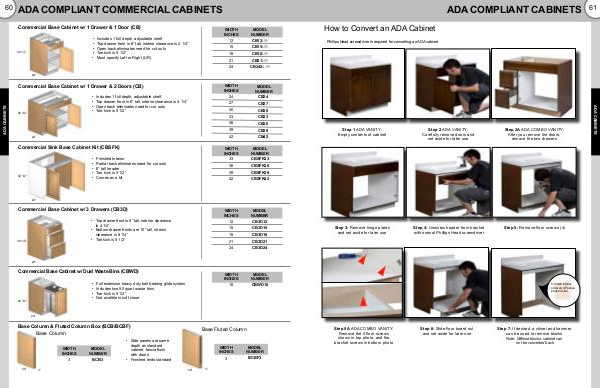

How to Convert an ADA Cabinet
Phillips Head screwdriver is required for converting an ADA cabinet
Step 1 ADA VANITY: Empty contents of cabinet
Step 2 ADA VANITY: Carefully remove doors and set aside for later use
Step 2A ADA COMBO VANITY: After you remove the doors, remove the two drawers
ADA CABINETS
Step 3: Remove hinge plates and set aside for later use
Step 4: Unscrew header from bracket with normal Phillips Head screwdriver
Step 5: Remove floor screws( 4)
To finish interior, order an AP series panel or skin
Step 5A ADA COMBO VANITY: Remove the 4 floor screws shown in top photo, and the bracket screws in bottom photo
Step 6: Slide floor board out and set aside for later use
Step 7: If desired, a chisel and hammer can be used to remove blocks
Note: Without blocks, cabinet can not be converted back
