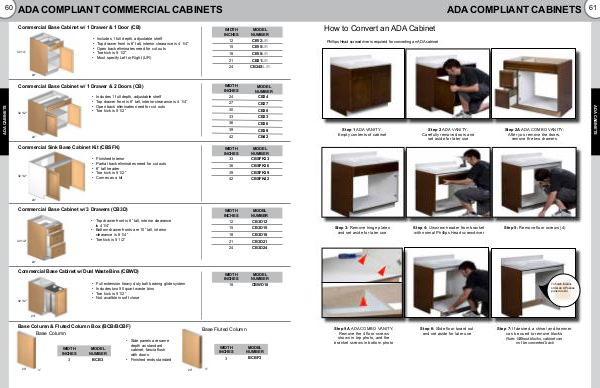

2017 RSI PCS Product Specification Guide Volume 1 | Page 60

60

ADA COMPLIANT COMMERCIAL CABINETS

Commercial Base Cabinet w / 1 Drawer & 1 Door( CB)
32 1 / 2”
• Includes 1 full depth, adjustable shelf
• Top drawer front is 6” tall, interior clearance is 4 1 / 4”
• Open back eliminates need for cut outs
• Toe kick is 5 1 / 2”
• Must specify Left or Right( L / R)
WIDTH INCHES
12 15 18 21
MODEL NUMBER
CB12L / R CB15L / R CB18L / R CB21L / R
24
CB24SL / R
24”
ADA CABINETS
Commercial Base Cabinet w / 1 Drawer & 2 Doors( CB)
32 1 / 2”
24”
• Includes 1 full depth, adjustable shelf
• Top drawer front is 6” tall, interior clearance is 4 1 / 4”
• Open back eliminates need for cut outs
• Toe kick is 5 1 / 2”
WIDTH INCHES
24 27 30 33 36 39 42
MODEL NUMBER CB24 CB27 CB30 CB33 CB36 CB39 CB42
Commercial Sink Base Cabinet Kit( CBSFK)
32 1 / 2”
• Finished Interior
• Partial back eliminates need for cut outs
• 6” tall header
• Toe kick is 5 1 / 2”
• Comes as a kit
WIDTH INCHES
33 36 39 42
MODEL NUMBER
CBSFK33 CBSFK36 CBSFK39 CBSFK42
24”
Commercial Base Cabinet w / 3 Drawers( CB3D)
32 1 / 2”
• Top drawer front is 6” tall, interior clearance is 4 1 / 4”
• Bottom drawer fronts are 10” tall, interior clearance is 8 1 / 4”
• Toe kick is 5 1 / 2”
WIDTH INCHES
12 15 18 21
MODEL NUMBER
CB3D12 CB3D15 CB3D18 CB3D21
24
CB3D24
24”
Commercial Base Cabinet w / Dual Waste Bins( CBWD)
32 1 / 2”
• Full extension heavy duty ball bearing glide system
• Includes two 50 quart waste bins
• Toe kick is 5 1 / 2”
• Not availble in soft close
WIDTH INCHES
18
MODEL NUMBER
CBWD18
24”
Base Column & Fluted Column Box( BCB / BCBF) Base Column
WIDTH INCHES
3
MODEL NUMBER
BCB3
• Side panels are same depth as standard cabinet, fascia flush with doors
• Finished ends standard
Base Fluted Column
WIDTH INCHES
3
MODEL NUMBER
BCBF3
24” 3” 24” 3”
