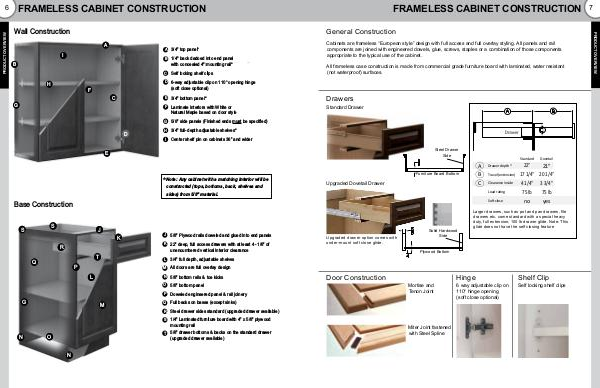

PRODUCT OVERVIEW |
Wall Construction
B
I
|
A |
A
B
C
|
3 / 4” top panel *
1 / 4 " back dadoed panel into end panel with concealed 4 " mounting plywood mounting rail * rail *
Self locking shelf clips
|
G |
H |
F |
C |
D
E F
|
6-way adjustable clip on 110 ° opening hinge( soft close optional)
3 / 4” bottom panel *
Laminate interiors with White or Natural Maple based on door style
|
|
G |
5 / 8” side panels( Finished ends must be specified) |
S |
Q |
S |
R |
P |
T
J
|
K |
J K
L M
|
5 / 8” Plywood rails doweled and glued into end panels
22” deep, full access drawers with at least 4-1 / 8” of unencumbered vertical interior clearance
3 / 4” full depth, adjustable shelves
All doors are full overlay design
|
L |
N |
5 / 8” bottom rails & toe kicks |
||||||
O |
5 / 8” bottom panel |
|||||||
P |
Doweled engineered panel & rail joinery |
|||||||
G |
M |
Q R |
Full backs on bases( except sinks)
Steel drawer sides standard( upgraded drawer available)
|
|||||
S |
1 / 4” Laminated furniture board with 4” x 5 / 8” plywood mounting rail |
|||||||
N |
O |
T |
5 / 8” drawer bottoms & backs on the standard drawer( upgraded drawer available) |
|||||
