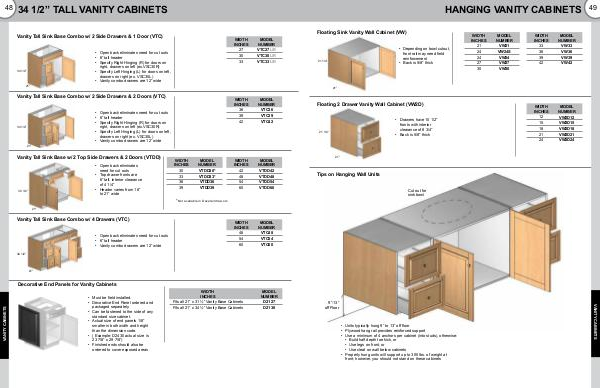

HANGING VANITY CABINETS
49
|
Floating Sink Vanity Wall Cabinet( VW)
21 1 / 4”
|
|
|
|
|
• Depending on bowl cutout, front rail may need field reinforcement
• Back is 5 / 8” thick
WIDTH INCHES
21 24 24 27 30
MODEL NUMBER
VW21 VW24S VW24 VW27 VW30
WIDTH INCHES
33 36 39 42
MODEL NUMBER
VW33 VW36 VW39 VW42
21”
Floating 2 Drawer Vanity Wall Cabinet( VW2D)
21 1 / 4”
• Drawers have 10 1 / 2” fronts with interior clearance of 8 3 / 4”
• Back is 5 / 8” thick
WIDTH INCHES
12 15 18 21 24
MODEL NUMBER
VW2D12 VW2D15 VW2D18 VW2D21 VW2D24
21”
Tips on Hanging Wall Units
Cut out for sink bowl
9”-13” off Floor
• Units typically hung 9” to 13” off floor
• Plywood hang rail provides reinforced support
• Use a minimum of 4 anchors per cabinet( into studs), otherwise:
• Build half depth toe kick, or
• Use legs on front, or
• Use cleat on wall below cabinets
• Properly hung units will support up to 300 lbs. of weight at front; however, you should not stand on these cabinets
VANITY CABINETS
