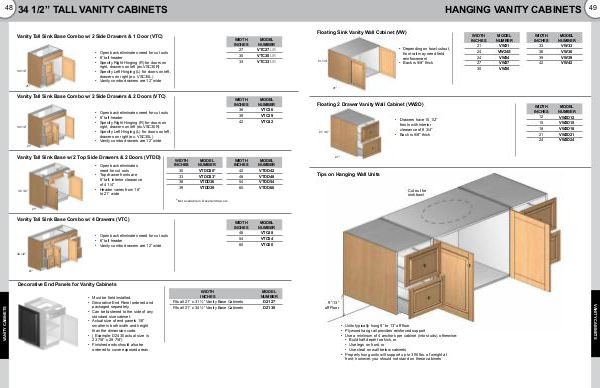

Vanity Tall Sink Base Combo w / 2 Side Drawers & 1 Door( VTC)
34 1 / 2”
21”
• Open back eliminates need for cut outs
• 6” tall header
• Specify Right Hinging( R) for doors on right, drawers on left( ex. VSC30R)
• Specify Left Hinging( L) for doors on left, drawers on right( ex. VSC30L)
• Vanity combo drawers are 12” wide
|
WIDTH INCHES
27 30 33
|
MODEL NUMBER
VTC27L / R VTC30L / R VTC33L / R
|
||||||
|
Vanity Tall Sink Base Combo w / 2 Side Drawers & 2 Doors( VTC)
34 1 / 2”
|
21”
• Open back eliminates need for cut outs
• 6” tall header
• Specify Right Hinging( R) for doors on right, drawers on left( ex. VSC30R)
• Specify Left Hinging( L) for doors on left, drawers on right( ex. VSC30L)
• Vanity combo drawers are 12” wide
|
WIDTH INCHES
36 39 42
|
MODEL NUMBER
VTC36 VTC39 VTC42
|
|||||
|
Vanity Tall Sink Base w / 2 Top Side Drawers & 2 Doors( VTDD)
34 1 / 2”
|
• Open back eliminates need for cut outs
• Top drawer fronts are 6” tall, interior clearance of 4 1 / 4”
• Header varies from 18” to 21” wide
|
WIDTH INCHES
30 33 36 39
|
MODEL NUMBER
VTDD30 * VTDD33 * VTDD36 VTDD39
|
WIDTH INCHES
42 48 54 60
|
MODEL NUMBER
VTDD42 VTDD48 VTDD54 VTDD60
|
* Not available in Dovetail drawers |
21” |
||||
|
Vanity Tall Sink Base Combo w / 4 Drawers( VTC)
• Open back eliminates need for cut outs
• 6” tall header
• Vanity combo drawers are 12” wide
|
WIDTH INCHES
48 54 60
|
MODEL NUMBER
VTC48 VTC54 VTC60
|
||
34 1 / 2” |
||||
21” |
||||
Decorative End Panels for Vanity Cabinets |
||||||
VANITY CABINETS |
• Must be field installed.
• Decorative End Panel ordered and packaged separately.
• Can be fastened to the side of any standard size cabinet.
• Actual size of end panels 1 / 8” smaller in both width and height than the dimension code.
•( Example: D2430 actual size is 23 7 / 8” x 29 7 / 8”)
• Finished ends should also be ordered to cover exposed areas
|
WIDTH INCHES
Fits all 21” x 31 ½” Vanity Base Cabinets Fits all 21” x 34 ½” Vanity Base Cabinets
|
MODEL NUMBER
D2127 D2130
|
