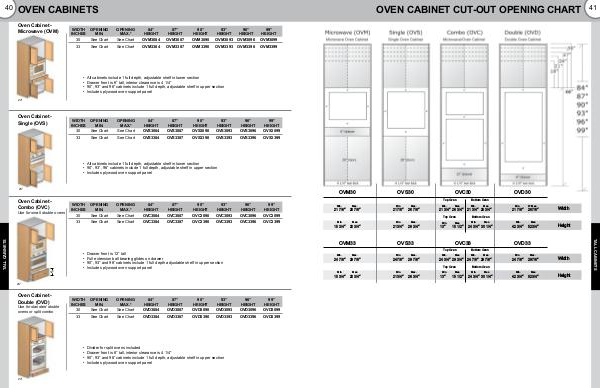

2017 RSI PCS Product Specification Guide Volume 1 | Page 40

40

OVEN CABINETS

Oven Cabinet- Microwave( OVM)
WIDTH INCHES
30
OPENING MIN.
See Chart
OPENING MAX.*
See Chart
84” HEIGHT
OVM3084
87” HEIGHT
OVM3087
90” HEIGHT
OVM3090
93” HEIGHT
OVM3093
96” HEIGHT
OVM3096
99” HEIGHT
OVM3099
33
See Chart
See Chart
OVM3384
OVM3387
OVM3390
OVM3393
OVM3396
OVM3399
• All cabinets include 1 full depth, adjustable shelf in lower section
• Drawer front is 6” tall, interior clearance is 4 1 / 4”
• 90”, 93” and 96” cabinets include 1 full depth, adjustable shelf in upper section
• Includes plywood oven support panel
24”
Oven Cabinet- Single( OVS)
WIDTH INCHES
30
OPENING MIN.
See Chart
OPENING MAX.*
See Chart
84” HEIGHT
OVS3084
87” HEIGHT
OVS3087
90” HEIGHT
OVS3090
93” HEIGHT
OVS3093
96” HEIGHT
OVS3096
99” HEIGHT
OVS3099
33
See Chart
See Chart
OVS3384
OVS3387
OVS3390
OVS3393
OVS3396
OVS3399
• All cabinets include 1 full depth, adjustable shelf in lower section
• 90”, 93”, 96” cabinets include 1 full depth, adjustable shelf in upper section
• Includes plywood oven support panel
24”
Oven Cabinet- Combo( OVC)
Use for small double ovens
WIDTH INCHES
30
OPENING MIN.
See Chart
OPENING MAX.*
See Chart
84” HEIGHT
OVC3084
87” HEIGHT
OVC3087
90” HEIGHT
OVC3090
93” HEIGHT
OVC3093
96” HEIGHT
OVC3096
99” HEIGHT
OVC3099
33
See Chart
See Chart
OVC3384
OVC3387
OVC3390
OVC3393
OVC3396
OVC3399
TALL CABINETS
12”
• Drawer front is 12” tall
• Full extension ball bearing glides on drawer
• 90”, 93” and 96” cabinets include 1 full depth adjustable shelf in upper section
• Includes plywood oven support panel
24”
Oven Cabinet- Double( OVD)
Use for standard double ovens or split combo
WIDTH INCHES
30 33
OPENING MIN.
See Chart See Chart
OPENING MAX.*
See Chart See Chart
84” HEIGHT
OVD3084 OVD3384
87” HEIGHT
OVD3087 OVD3387
90” HEIGHT
OVD3090 OVD3390
93” HEIGHT
OVD3093 OVD3393
96” HEIGHT
OVD3096 OVD3396
99” HEIGHT
OVD3099 OVD3399
• Divider for split ovens included
• Drawer front is 6” tall, interior clearance is 4 1 / 4”
• 90”, 93” and 96” cabinets include 1 full depth, adjustable shelf in upper section
• Includes plywood oven support panel
24”
