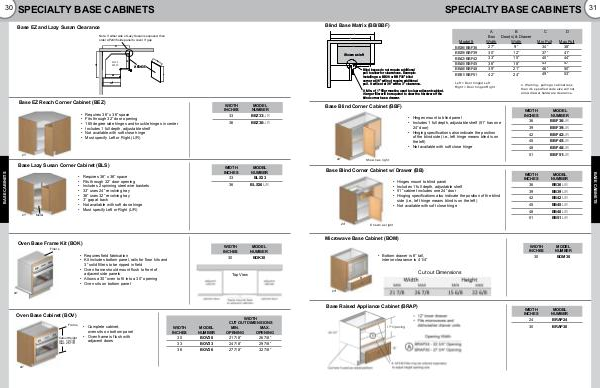

2017 RSI PCS Product Specification Guide Volume 1 | Page 31

SPECIALTY BASE CABINETS 31

Blind Base Matrix( BB / BBF)
C
A
D
Shown as left
B
Blind bases do not require additional pull to allow for clearances. Example: Installing a a BB36 or BBF36” blind corner at 36” will not require additional pull. It will set at 36” with a 3” clearance.
A Min. of 1 " filler must be used to clear adjacent cabinet. A larger filler will be required to clear the hardware if the blind corner has a drawer.
Model # BB36 / BBF36 BB39 / BBF39 BB42 / BBF42 BB45 / BBF45 BB48 / BBF48 BB51 / BBF51
Box Width 27” 30” 33” 36” 39” 42”
Left = Door hinged Left Right = Door hinged Right
A
B
C
D
Door( s) & Drawer
Width
9”
12”
15”
18”
21”
24”
Min Pull * 34” 37” 40” 43” 46” 49”
*
Max Pull 38” 41” 44” 47” 50” 53”
Warning- pulling a cabinet less than it’ s specified code size will not allow drawer hardware clearance.
Base Blind Corner Cabinet( BBF)
• Hinges mount to blind panel
• Includes 1 full depth, adjustable shelf( 51” has one 24” door)
• Hinging specifications also indicate the position of the blind side( i. e., left hinge means blind is on the left)
• Not available with soft close hinge
WIDTH INCHES
36 39 42 45 48
MODEL NUMBER
BBF36L / R BBF39L / R BBF42L / R BBF45L / R BBF48L / R
24”
Shown as right
51
BBF51L / R
Base Blind Corner Cabinet w / Drawer( BB)
• Hinges mount to blind panel
• Includes 1 full depth, adjustable shelf
• 51” cabinet includes one 24” door
• Hinging specifications also indicate the position of the blind side( i. e., left hinge means blind is on the left)
• Not available with soft close hinge
WIDTH INCHES
36 39 42 45 48
MODEL NUMBER
BB36L / R BB39L / R BB42L / R BB45L / R BB48L / R
BASE CABINETS
51
BB51L / R
24”
Shown as right
Microwave Base Cabinet( BOM)
• Bottom drawer is 6” tall, interior clearance is 4 1 / 4”
WIDTH INCHES
30
MODEL NUMBER
BOM30
6”
Cut out Dimensions
24”
Base Raised Appliance Cabinet( BRAP)
17” Opening
WIDTH INCHES
24 30
MODEL NUMBER
BRAP24 BRAP30
