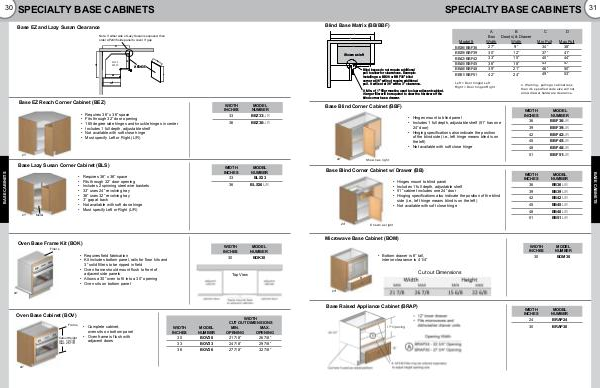

2017 RSI PCS Product Specification Guide Volume 1 | Page 30

30

SPECIALTY BASE CABINETS

Base EZ and Lazy Susan Clearance
Note: If either side of Lazy Susan is exposed, then order AP2435 side panel to cover 3” gap
BLSXX BEZXX
AP2435
Base EZ Reach Corner Cabinet( BEZ)
• Requires 36” x 36” space
• Fits through 32” door opening
• 165 degree side hinges and knuckle hinges in center
• Includes 1 full depth, adjustable shelf
• Not available with soft close hinge
• Must specify Left or Right( L / R)
WIDTH INCHES
33 36
MODEL NUMBER
BEZ33L / R BEZ36L / R
21”
BASE CABINETS
Base Lazy Susan Corner Cabinet( BLS)
• Requires 36” x 36” space
• Fits through 32” door opening
• Includes 2 spinning steel wire baskets
• 33” uses 24” revolving tray
• 36” uses 32” revolving tray
• 3” gap at back
• Not available with soft close hinge
• Must specify Left or Right( L / R)
WIDTH INCHES
33 36
MODEL NUMBER
BLS33 BLS36L / R
21” Metal
Oven Base Frame Kit( BOK)
Fillers
• Requires field fabrication
• Kit includes bottom panel, rails for floor kits and 3” solid fillers to be ripped in field
• Oven frame should mount flush to front of adjacent side panels
• Allows a 30” oven to fit into a 30” opening
• Oven sits on bottom panel
WIDTH INCHES
30
Top View
MODEL NUMBER
BOK30
24”
Oven Base Cabinet( BOV)
Frame
Cutout Height min 19 7 / 8” max 26 7 / 8”
• Complete cabinet, oven sits on bottom panel
• Oven frame is flush with adjacent doors
WIDTH INCHES
30 33 36
MODEL NUMBER
BOV30 BOV33 BOV36
WIDTH CUT OUT DIMENSIONS MIN.
MAX. OPENING OPENING
21 7 / 8” 26 7 / 8” 24 7 / 8” 29 7 / 8” 27 7 / 8” 32 7 / 8”
24”
