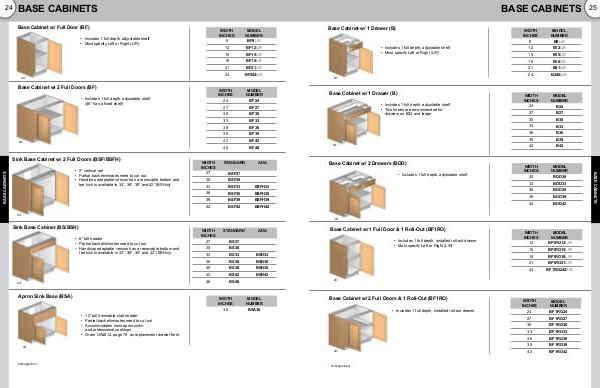

2017 RSI PCS Product Specification Guide Volume 1 | Page 24

24

BASE CABINETS

Base Cabinet w / Full Door( BF)
24”
Base Cabinet w / 2 Full Doors( BF)
24”
• Includes 1 full depth, adjustable shelf
• Must specify Left or Right( L / R)
• Includes 1 full depth, adjustable shelf( 48” has a fixed shelf)
WIDTH INCHES
9 12 15 18 21 24
WIDTH INCHES
24 27 30 33 36 39 42 48
MODEL NUMBER
BF9L / R BF12L / R BF15L / R BF18L / R BF21L / R BF24SL / R
MODEL NUMBER
BF24 BF27 BF30 BF33 BF36 BF39 BF42 BF48
BASE CABINETS
Sink Base Cabinet w / 2 Full Doors( BSF / BSFH)
• 2” vertical rail
• Partial back eliminates need to cut out
• Handicap adaptable version has a removable bottom and toe kick is available in 33”, 36”, 39” and 42”( BSHxx)
WIDTH INCHES
27 30 33 36 39
STANDARD
BSF27 BSF30 BSF33 BSF36 BSF39
ADA
BSFH33 BSFH36 BSFH39
42
BSF42
BSFH42
24”
Sink Base Cabinet( BS / BSH)
• 6” tall header
• Partial back eliminates need to cut out
• Handicap adaptable version has a removable bottom and toe kick is available in 33”, 36”, 39” and 42”( BSHxx)
WIDTH INCHES
27 30 33
STANDARD
BS27 BS30 BS33
ADA
BSH33
36
BS36
BSH36
39
BS39
BSH39
42
BS42
BSH42
24”
48
BS48
Apron Sink Base( BSA)
• 12” tall trimmable slab header
• Partial back eliminates need to cut out
• Accommodates most apron sinks and professional cooktops
• Order OA3612, page 75, as replacement drawer front
WIDTH INCHES
36
MODEL NUMBER
BSA36
24”
S = Single Door
