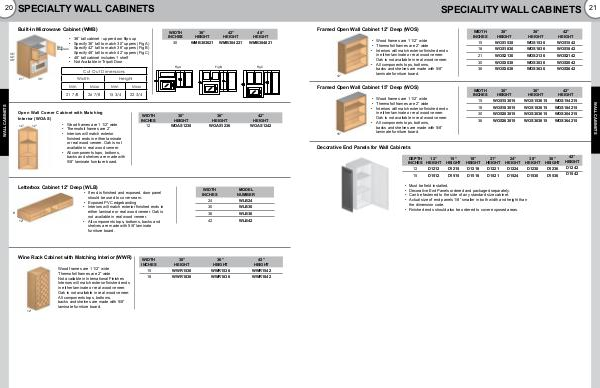

2017 RSI PCS Product Specification Guide Volume 1 | Page 20

20

SPECIALTY WALL CABINETS

36” 42” 48”
Built-In Microwave Cabinet( WMB)
21” 30”
• 36” tall cabinet- upper door flips up
• Specify 36” tall to match 30” uppers( Fig A)
See
Diagram Specify 42” tall to match 36” uppers( Fig B) Specify 48” tall to match 42” uppers( Fig C)
• 48” tall cabinet includes 1 shelf
• Not Available in Tripoli Door
Cut Out Dimensions Width
Height Min Max Min Max 21 7 / 8 26 7 / 8 15 3 / 4 22 3 / 4
WIDTH INCHES
30
36” HEIGHT
WMB303621
42” HEIGHT
WMB304221
48” HEIGHT
WMB304821
Fig A Fig B Fig C
WALL CABINETS
Open Wall Corner Cabinet with Matching
Interior( WOAS)
12”
12”
• Wood frames are 1 1 / 2” wide
• Thermofoil frames are 2”
• Interiors will match exterior finished ends in either laminate or real wood veneer. Oak is not available in real wood veneer.
• All components tops, bottoms, backs and shelves are made with 5 / 8” laminate furniture board.
WIDTH INCHES
12
30” HEIGHT
WOAS1230
36” HEIGHT
WOAS1236
42” HEIGHT
WOAS1242
6”
Letterbox Cabinet 12” Deep( WLB)
• If end is finished and exposed, door panel should be used to cover seam.
• Exposed PVC edgebanding
• Interiors will match exterior finished ends in either laminate or real wood veneer. Oak is not available in real wood veneer.
12”
• All components tops, bottoms, backs and shelves are made with 5 / 8” laminate furniture board.
WIDTH INCHES
24 30 36 42
MODEL NUMBER
WLB24 WLB30 WLB36 WLB42
Wine Rack Cabinet with Matching Interior( WWR)
12”
• Wood frames are 1 1 / 2” wide
• Thermofoil frames are 2” wide
• Not available in International Finishes
• Interiors will match exterior finished ends in either laminate or real wood veneer. Oak is not available in real wood veneer.
• All components tops, bottoms, backs and shelves are made with 5 / 8” laminate furniture board.
WIDTH INCHES
15 18
30” HEIGHT
WWR1530 WWR1830
36” HEIGHT
WWR1536 WWR1836
42” HEIGHT
WWR1542 WWR1842
