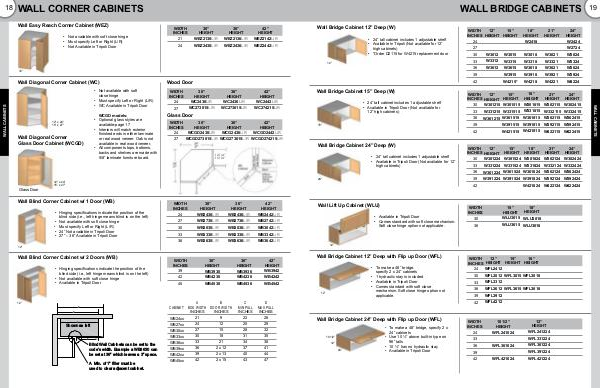

2017 RSI PCS Product Specification Guide Volume 1 | Página 19

WALL BRIDGE CABINETS 19

Wall Bridge Cabinet 12” Deep( W)
12”
• 24” tall cabinet includes 1 adjustable shelf
• Available In Tripoli( Not available for 12” high cabinets)
• * Order D2115 for W4215 replacement door
WIDTH INCHES
24
27 30 33 36
12” HEIGHT
W3012 W3312 W3612
15” HEIGHT
W3015 W3315 W3615
18” HEIGHT
W2418
W3018 W3318 W3618
21” HEIGHT
W3021 W3321 W3621
24” HEIGHT
W2424 W2724 W3024 W3324 W3624
39
W3915
W3918
W3921
W3924
42
W4215 *
W4218
W4221
W4224
Wall Bridge Cabinet 15” Deep( W)
15”
• 24” tall cabinet includes 1 adjustable shelf
• Available in Tripoli Door( Not available for 12” high cabinets)
WIDTH INCHES
30 33 36 39 42
12” HEIGHT
W301215
15” HEIGHT
W301515 W331215 W331515 W361215 W361515 W391515 W421515
18” HEIGHT
W301815 W331815 W361815 W391815 W421815
21” HEIGHT
W302115 W332115 W362115 W392115 W422115
24” HEIGHT
W302415 W332415 W362415 W392415 W422415
WALL CABINETS
Wall Bridge Cabinet 24” Deep( W)
24”
• 24” tall cabinet includes 1 adjustable shelf
• Available in Tripoli Door( Not available for 12” high cabinets)
WIDTH 12” INCHES HEIGHT
30 W301224 33 W331224 36 W361224 39 W391224 42
15” HEIGHT
W301524
18” HEIGHT
W301824 W331524 W331824 W361524 W361824 W391524 W391824
W421824
21” HEIGHT
W302124
24” HEIGHT
W302424 W332124 W332424 W362124 W362424 W392124 W392424 W422124 W422424
Wall Lift Up Cabinet( WLU)
• Available in Tripoli Door
• Comes standard with soft close mechanism. Soft close hinge option not applicable.
WIDTH INCHES
30 36
15” HEIGHT
WLU3015 WLU3615
18” HEIGHT
WLU3018
WLU3618
12”
Wall Bridge Cabinet 12” Deep with Flip up Door( WFL)
12”
• To make a 48” bridge, specify 2 x 24” cabinets
• 1 hydraulic stay is included
• Available in Tripoli Door
• Comes standard with soft close mechanism. Soft close hinge option not applicable.
WIDTH 12” INCHES HEIGHT
24 WFL2412 30 WFL3012 33 WFL3312 36 WFL3612 39 WFL3912 42 WFL4212
15” HEIGHT
18” HEIGHT
WFL3015 WFL3018
WFL3615 WFL3618
Wall Bridge Cabinet 24” Deep with Flip up Door( WFL)
10 1 / 2”
12”
24”
• To make a 48” bridge, specify 2 x 24” cabinets
• Use 10 ½” above built-in type on 96” talls
• 10 ½” has no hydraulic stay
• Available in Tripoli Door
WIDTH INCHES
24 33 36 39 42
10 1 / 2” HEIGHT
WFL241024
WFL361024
WFL421024
12” HEIGHT
WFL241224 WFL331224 WFL361224 WFL391224 WFL421224
