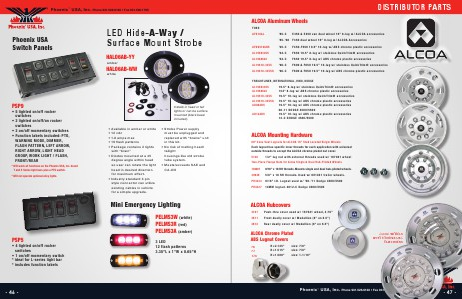

2015 Phoenix USA Catalog | Page 47

DISTRIBUTOR PARTS
ALCOA Aluminum Wheels
FORD
AFD16AL

’85-C

E350 & E450 van dual wheel 16” 8-lug w/ ALCOA accessories

’85-’98 F350 dual wheel 16” 8-lug w/ ALCOA Accessories

AFD9510ABS

’05-C

F450-F550 19.5” 10-lug w/ ABS chrome plastic accessories

AL195833SS

’04-C

F650 19.5” 8-lug w/ stainless QuickTrim® accessories

AL1958822

’04-C

F650 19.5” 8-lug w/ ABS chrome plastic accessories

AL19510-33SS

’90-C

F600 & F650 19.5” 10-lug w/ stainless QuickTrim® accessories

AL19510-33SSQ

’90-C

F600 & F650 19.5” 10-lug w/ ABS chrome plastic accessories

FREIGHTLINER, INTERNATIONAL, HINO, DODGE
AL195833SS
AL1958822
AL19510-33SS
AL19510-33SSQ
AD08ABS

AD12ABS

19.5” 8-lug w/ stainless QuickTrim® accessories
19.5” 8-lug w/ ABS chrome plastic accessories
19.5” 10-lug w/ stainless QuickTrim® accessories
19.5” 10-lug w/ ABS chrome plastic accessories
19.5” 10-lug w/ ABS chrome plastic accessories
08-11 DODGE 4500/5500
19.5” 10-lug w/ ABS chrome plastic accessories
12-C DODGE 4500/5500

ALCOA Mounting Hardware

60º Cone Seat Lugnuts for ALCOA 16” Stud Located Single Wheels
Each lugnut has specific inner threads for each application with universal
outside threads to accept the ALCOA chrome plated nut cover.
5120
1/2” lug nut with external threads used w/ 167041 wheel
Two-Piece Flange Nuts for Alcoa Single & Dual Hub-Piloted Wheels
139987

9/16” x 18 RH threads. Mounts single and dual hub-piloted wheels.

39946

5/8” x 18 RH threads. Used w/ 661401 trailer wheels.

PH3324 9/16” I.D. Lugnut used w/ ’08-’11 Dodge 4500/5500
PH4327 14MM lugnut. 2012-C Dodge 4500/5500

ALCOA Hubcovers
3167

Push-thru cover used w/ 167041 wheel, 4.70”

3611

Front dually cover w/ Medallion (8” on 6.5”)

3612

Rear dually cover w/ Medallion (8” on 6.5”)

ALCOA Chrome Plated
ABS Lugnut Covers
78
79
190

H=2.125”
H=1.515”
H=1.500”

size: 7/8”
size: 7/8”
size: 1-1/16”
