14th-Edition-BriskHeat-Product-Catalog A

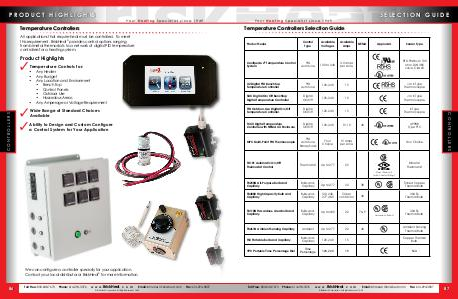

SELECTION GUIDE Your Heating Specialist since 1949 Temperature Controllers Selection Guide Control Type Available Voltages Available Amps Centipede 2® Temperature Control System PID Autotune 100 to 240 3.5 amps per zone RTD Platinum 100 ohm, DIN 385 curve, Class B X2 Digital PID Benchtop Temperature Controller PID Autotune 120, 240 15 J or K Type Thermocouple SDC Digital On/Off Benchtop Digital Temperature Controller Digital On/Off 120, 240 10 J or K Type Thermocouple TTD Outdoor-Use Digital On/Off Temperature Controller Digital On/Off 120, 240 15 K Type Thermocouple TC4X Digital Temperature Controller with NEMA 4X Enclosure Digital On/Off 120, 240 15, 10 MPC Multi-Point PID Thermocouple PID Autotune Ramp/Soak Your Choice 15 amps per zone TD101 Automatic On/Off Thermostat Control Thermostat Up to 277 25 Product Series NEMA Approvals Sensor Type Your Choice FM APPROVED Class I Division 2 (with conduit fitting) Bimetal Thermostat TB250N All-Purpose Bulb and Capillary Bulb-andCapillary Up to 277 22 3R Tinned Copper Thermal Bulb TB4000 High Capacity Bulb and Capillary Bulb-andCapillary 120, 240, 277, 480 50 per contactor 4X 304 SS Thermal Bulb TB110N Hazardous-Area Bulb and Capillary Bulb-andCapillary Up to 480 22 7&9 TB261N Ambient Sensing Capillary Ambient Up to 277 22 4X TS0 Portable Bulb and Capillary Bulb-andCapillary 120, 240 15 Copper Thermal Bulb TP0 Portable Time Percentage Dial Time Percentage 120, 240 15 N/A Toll Free: 800-848-7673 Phone: 614-294-3376 w w w .BriskHeat. c o m Hazardous-Rated 304 SS Thermal Bulb Ambient Sensing Thermal Bulb Email: bhtsales1@briskheat.com Fax: 614-294-3807 © BriskHeat Corporation. All Rights Reserved. 16-05 CONTROLLERS A99BB Type PTC 4X 87

14th-Edition-BriskHeat-Product-Catalog A | Page 99
