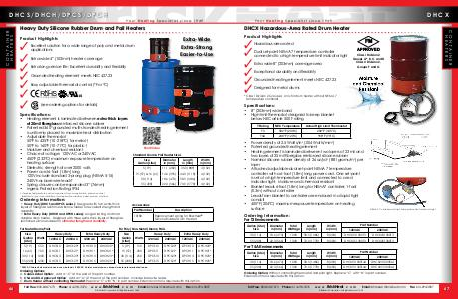

14th-Edition-BriskHeat-Product-Catalog A | Page 78

CONTAINER
HEATERS

DHCS/DHCH/DPCS/DPCH

Your Heating Specialist since 1949

Heavy Duty Silicone Rubber Drum and Pail Heaters
Product Highlights

Extra-Wide
Extra-Strong
Easier-to-Use

Excellent solution for a wide range of poly and metal drum
applications
Extra-wide 4” (102mm) heater coverage
Extra-long service life: Excellent durability and flexibility
Grounded heating element meets NEC 427.23
Easy adjustable thermostat control (°F or °C)

(see ordering options for details)

Specifications:

• Heating element is laminated between extra-thick layers
of 20mil fiberglass reinforced silicone rubber
• Patented 360° grounded multi-stranded heating element
is uniformly placed to maximize heat distribution
• Adjustable thermostat

50°F to 425°F (10-218°C) for metal†

50°F to 160°F (10-71°C) for plastic†
• Moisture and chemical resistant
• Choice of voltage: 120VAC or 240VAC
• 450°F (232°C) maximum exposure temperature on
heating surface
• Dielectric strength of over 2000 volts
• Power cord 6-foot (1.8m) long

120V include standard 3-prong plug (NEMA 5-15)

240V has bare wire leads*
• Spring closure can be expanded 3” (76mm)
• Ingress Protection Rating: IP54

Short Video
Standard Drum & Pail Heater Sizes
Size
Gallon (Liter)

Diameter
in (mm)

Length
in (mm)

Width
in (mm)

5 (19)

11.1 (282)

35.0 (889)

4 (102)

15 (57) & 16 (61)

14.0 (355)

44.0 (1118)

4 (102)

30 (114)

18.6 (473)

58.5 (1486)

4 (102)

55 (208)

22.3 (566)

70.0 (1778)

4 (102)

† If precise temperature control is required for your application, please contact
BriskHeat or your local distributor for application assistance and product solutions.

Ordering Information:

• Heavy Duty (DHCS and DPCS series): Designed with two extra-thick
layers of fiberglass reinforced silicone rubber for excellent strength and
durability.
• Extra Heavy Duty (DHCH and DPCH series): Longest lasting and most
durable drum heater. Designed with three extra-thick layers of fiberglass
reinforced silicone rubber for ultimate strength and durability.

For Metal Drums/Pails
Size
Gallon
(Liter)

Watts

Accessories:
Part Number
10180

Description
Replacement spring for BriskHeat®
Silicone Rubber Drum Heaters

For Poly (Non-Metal) Drums/Pails
Heavy Duty

120VAC

240VAC

Extra Heavy Duty
120VAC

240VAC

Size
Gallon
(Liter)

Watts

Heavy Duty

Extra Heavy Duty

120VAC

240VAC

120VAC

240VAC

5 (19)

550

DHCS10

DHCS20*

DHCH10

DHCH20*

5 (19)

150

DPCS10

DPCS20*

DPCH10

DPCH20*

16 (61)

700

DHCS11

DHCS21*

DHCH11

DHCH21*

15 (57)

200

DPCS11

DPCS21*

DPCH11

DPCH21*

30 (114)

1000

DHCS13

DHCS23*

DHCH13

DHCH23*

30 (114)

250

DPCS13

DPCS23*

DPCH13

DPCH23*

55 (208)

1200

DHCS15

DHCS25*

DHCH15

DHCH25*

55 (208)

300

DPCS15

DPCS25*

DPCH15

DPCH25*

* 240VAC Fahrenheit models have bare wire leads. 240VAC Celsius models have crimped wire ferrule terminated leads.

Ordering Options:
A. Celsius Label Option: Add a “-C” at the end of the part number.
B. CSA and UL Approved Option: Add an “A” at the end of the part number. Includes bare wire leads.
C. Drum Heater without controlling thermostat: Replace “C” with “N” in part number. External control is required with this option.

66

Toll Free: 800-848-7673

Phone: [phone]

w w w .BriskHeat. c o m

Email: [e-mail] Fax: [phone]

© BriskHeat Corporation. All Rights Reserved. 16-06
