MCH

Your Heating Specialist since 1949

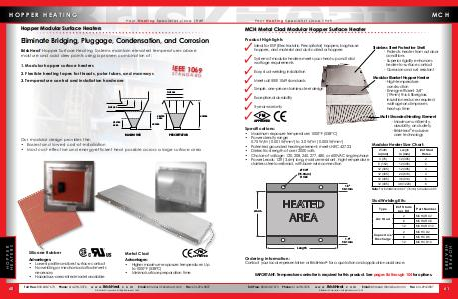

MCH Metal Clad Modular Hopper Surface Heater
Product Highlights
Ideal for ESP (Electrostatic Precipitator) hoppers, baghouse
hoppers, and material and dust-collector hoppers

Stainless Steel Protective Shell
- Protects heater from outdoor
conditions
- Superior rigidity enhances
heater-to-surface contact
- Corrosion and rust resistant

System of modular heaters meets your heat-up and total
wattage requirements
Easy stud-welding installation

Modular Blanket Hopper Heater
- High-temperature
construction
- Energy-efficient 3/4”
(19mm) thick fiberglass
insulation reduces required
wattage and improves
heat-up time

Meets all IEEE 1069 standards
Simple, one-piece stainless steel design
Exceptional durability
5-year warranty

FM

Multi-Stranded Heating Element
- Maximum uniformity,
durability, and safety
- BriskHeat® exclusive
core technology

APPROVED

Specifications:

• Maximum exposure temperature: 1000°F (538°C)
• Power density range:
0.75 W/in2 (0.001 W/mm2) to 3.0 W/in2 (0.005 W/mm2)
Modular Heater Size Chart:
• Patented grounded heating element; meets NEC 427.23
Width
Length
# of Stud
• Dielectric strength of over 2000 volts
in (mm)
in (mm)
Holes
• Choice of voltage: 120, 208, 240, 277, 480, or 600VAC single-phase
3
(76)
12
(305)
2
• Power Leads: 12ft (3.6m) long, moisture resistant, high-temperature
6 (152)
12 (305)
2
stainless steel overbraid, with bare-wire connection
Ø 5/8”
[15.9mm]
HOLE
1.5”
38.1mm

Width

12 (305)

12 (305)

4

12 (305)

24 (610)

4

12 (305)

36 (914)

6

12 (305)

48 (1220)

6

Note: For installation add 3” (76mm) to heater width

Stud Welding Kits:

HEATED
AREA

Type
Arc Stud

Capacitive
Discharge

1.5”
38.1mm

# of Studs
per Kit

Part Number

2

MCHARC2

6

MCHARC6

12

MCHARC12

2

MCHCD2

6

MCHCD6

12

MCHCD12

Ordering Information:

Contact your local representative or BriskHeat® for a quotation and application assistance.

HOPPER
HEATERS

Length

IMPORTANT: Temperature controller is required for this product. See pages 86 through 104 for options.
