Product Highlights
Ideal for freeze protection and low temperature process maintenance up to 248 ° F( 120 ° C)
Automatically adjusts heat output based on surface temperature
Your Heating Specialist since 1949

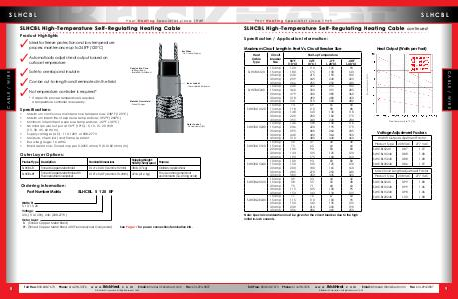

SLHCBL High-Temperature Self-Regulating Heating Cable
Bus Wires- Tin Coated Copper
CABLE / WIRE
Safe to overlap and insulate
Can be cut-to-length and terminated in the field
No temperature controller is required *
* If a specific process temperature is required, a temperature controller is necessary.
Specifications:
• Maximum continuous maintenance temperature: 248 ° F( 120 ° C)
• Maximum intermittent exposure temperature: 392 ° F( 200 ° C)
• Minimum intermittent exposure temperature:-22 ° F(-30 ° C)
• Nominal power output at 50 ° F( 10 ° C): 5, 10, 15, 20 W / ft( 15, 30, 45, 60 W / m)
• Supply voltages( AC): 110-120V or 208-277V
• Moisture, chemical, and flame resistant
• Bus wire gauge: 16 AWG
• Braid resistance: Tinned copper 0.0055 ohms / ft( 0.0182 ohms / m)
Outer Layer Options:
Conductive Core- Self-Regulating- Irradiation Crosslinked
Metallic Overshield- Tinned Copper
Inner Jacket- Thermoplastic Elastomer
Outer Jacket- Fluoropolymer( BF)
Product Type Description Nominal Dimensions
Shipping Weight: 500-ft( 152m) spool
Purpose SLHCBL-B Tinned Copper Metal Braid 0.14” x 0.36”( 3.6mm x 9.2mm) 38 lb.( 17 kg) Ordinary applications SLHCBL-BF
Tinned Copper Metal Braid with Fluoropolymer Overjacket
0.18” x 0.40”( 4.6mm x 10.2mm) 47 lb.( 21.2 kg)
For use in strong chemical environments( i. e. strong acids)
Ordering Information: Part Number Matrix
SLHCBL 5 120 BF
Watts / ft: 5, 10, 15, 20
Voltage: 120-( 110-120V), 240-( 208-277V)
Outer Layer: B-( Tinned Copper Metal Braid) BF-( Tinned Copper Metal Braid with Fluoropolymer Overjacket)
See Page 11 for power connection / termination kits.
