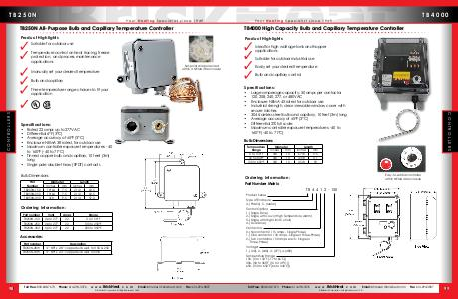

TB4000

Your Heating Specialist since 1949

TB4000 High Capacity Bulb and Capillary Temperature Controller
Product Highlights
Ideal for high wattage tank and hopper
applications
Suitable for outdoor industrial use
Easily set your desired temperature
Bulb and capillary control

Specifications:
•
•
•
•

CONTROLLERS

•
•
•
•

Large amperage capacity: 50 amps per contactor
120, 208, 240, 277, or 480VAC
Enclosure NEMA 4X rated for outdoor use
Industrial strength, clear viewable window cover with
secure latches
304 stainless steel bulb and capillary, 10 feet (3m) long
Αverage accuracy of ±5°F (3°C)
Differential 2% full scale
Maximum controller exposure temperatures: -40 to
160°F (-40 to 71°C)

Bulb Dimensions
Temperature
Range
0 to 150°F
50 to 300°F
150 to 650°F

Diameter
Inches
mm
3/8
10
3/8
10
3/8
10

Length
Inches
mm
6 7/8
175
4 3/8
111
3 5/8
92

Easy-to-set dial controller
within NEMA 4X enclosure

Ordering Information:
Part Number Matrix
TB 4 4 1 2 - 150
Product Series
Type of Enclosure
4- (Plastic), 5- (Metal)
Control Options
1- (Single Zone)
2- (Single with Low or High Temperature Alarm)
3- (Single with High Limit Cutout)
4- (Dual Zone)
Contactors
0- (No contactor / 15 amps - Single Phase)
1- (One contactor / 50 amps - Single or Three-Phase)
2- (Two contactors / 50 amps each - Single or
Three-Phase)
Voltage*
1- (120), 2- (240), 3- (277), 4-(480)
Temperature Range
150- (0 to 150˚F [-17 to 66˚C])
300- (50 to 300˚F [10 to 149˚C])
650- (150 to 650˚F [66 to 343˚C])
